| 概要 |
| 步进电机、小尺寸、大力矩、平滑型、步进角度:1.8°、NEMA8、20x20mm |
| 特征 |
● 可选范围更大，品种更加丰富
● 精巧的机身设计，结构更加紧凑，为客户实现设备的小型化、轻量化设计提供帮助
● 多种引线插座朝向：前插、侧插、后插，尤其后插式连接可以实现电机机身小型化,很大程度的节省安装空间，多种可定制化选择：绕组，多种出轴类型，多种出线方式、连接器、编码器及齿轮箱 |

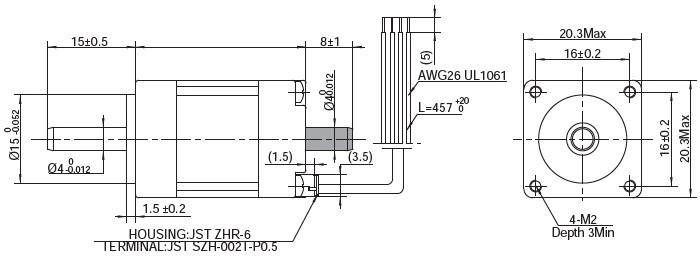

| 尺寸图 |
 |
| 技术概述 |
| 框架 |
法兰
mm |
相数 |
步距角
° |
长度
mm |
额定相电流
A |
静力矩
Nm |
重量
kg |
| 14 |
14 |
2 |
1.8 |
30 |
0.3 |
0.0056 |
0.03 |
| 20 |
20.3 |
2 |
1.8 |
24 |
0.2 |
0.01 |
0.04 |
| 20.3 |
2 |
1.8 |
28 |
0.2 |
0.016 |
0.05 |
| 20.3 |
2 |
1.8 |
33 |
0.6 |
0.02 |
0.07 |
| 20.3 |
2 |
1.8 |
38 |
0.6 |
0.04 |
0.08 |
| 20.3 |
2 |
1.8 |
45 |
0.6 |
0.044 |
0.1 |
| 20.3 |
2 |
1.8 |
48 |
0.6 |
0.048 |
0.11 |
| 25 |
25.3 |
2 |
1.8 |
23.5 |
0.25 |
0.045 |
0.05 |
| 25.3 |
2 |
1.8 |
23.5 |
0.40 |
0.045 |
0.05 |
| 25.3 |
2 |
1.8 |
23.5 |
0.60 |
0.045 |
0.05 |
| 25.3 |
2 |
1.8 |
23.5 |
0.90 |
0.045 |
0.05 |
| 25.3 |
2 |
1.8 |
33 |
0.29 |
0.086 |
0.085 |
| 25.3 |
2 |
1.8 |
33 |
0.52 |
0.086 |
0.085 |
| 25.3 |
2 |
1.8 |
33 |
0.70 |
0.086 |
0.085 |
| 25.3 |
2 |
1.8 |
33 |
1.00 |
0.086 |
0.085 |
| 28 |
28.3 |
2 |
1.8 |
32 |
0.67 |
0.063 |
0.11 |
| 28.3 |
2 |
1.8 |
45 |
0.67 |
0.095 |
0.14 |
| 28.3 |
2 |
1.8 |
50 |
0.67 |
0.12 |
0.2 |
| 28.3 |
2 |
1.8 |
32 |
0.95 |
0.043 |
0.11 |
| 28.3 |
2 |
1.8 |
45 |
0.95 |
0.07 |
0.14 |
| 28.3 |
2 |
1.8 |
50 |
0.95 |
0.1 |
0.2 |
| 35 |
35.2 |
2 |
1.8 |
20 |
0.4 |
0.068 |
0.1 |
| 35.2 |
2 |
1.8 |
28 |
0.4 |
0.1 |
0.14 |
| 35.2 |
2 |
1.8 |
35 |
1.0 |
0.12 |
0.18 |
| 35.2 |
2 |
1.8 |
33 |
0.4 |
0.11 |
0.17 |
| 35.2 |
2 |
1.8 |
20 |
0.4 |
0.068 |
0.1 |
| 35.2 |
2 |
1.8 |
20 |
0.4 |
0.005 |
0.1 |
| 35.2 |
2 |
1.8 |
24 |
0.4 |
0.1 |
0.12 |
| 35.2 |
2 |
1.8 |
27 |
0.5 |
0.14 |
0.13 |
| 35.2 |
2 |
1.8 |
31 |
1.0 |
0.15 |
0.15 |
| 35.2 |
2 |
1.8 |
33 |
0.7 |
0.18 |
0.16 |
| 35.2 |
2 |
1.8 |
47 |
1.0 |
0.44 |
0.23 |
| 35.2 |
2 |
1.8 |
54 |
0.9 |
0.46 |
0.27 |
| 39 |
39.4 |
2 |
0.9 |
20 |
0.4 |
0.1 |
0.12 |
| 39.4 |
2 |
0.9 |
25 |
0.6 |
0.12 |
0.14 |
| 39.4 |
2 |
0.9 |
31 |
0.4 |
0.16 |
0.17 |
| 39.4 |
2 |
0.9 |
47 |
0.4 |
0.36 |
0.26 |
| 39.4 |
2 |
1.8 |
20 |
0.5 |
0.11 |
0.12 |
| 39.4 |
2 |
1.8 |
31 |
0.65 |
0.18 |
0.17 |
| 39.4 |
2 |
1.8 |
44 |
1.0 |
0.45 |
0.25 |
| 39.4 |
2 |
1.8 |
33 |
0.6 |
0.18 |
0.18 |
| 39.4 |
2 |
1.8 |
37 |
0.7 |
0.15 |
0.2 |
| 42 |
42.3 |
2 |
0.9 |
33 |
0.5 |
0.018 |
0.22 |
| 42.3 |
2 |
0.9 |
33 |
1.33 |
0.018 |
0.22 |
| 42.3 |
2 |
0.9 |
39 |
0.5 |
0.31 |
0.28 |
| 42.3 |
2 |
0.9 |
39 |
1.68 |
0.31 |
0.28 |
| 42.3 |
2 |
0.9 |
47 |
0.5 |
0.36 |
0.35 |
| 42.3 |
2 |
0.9 |
47 |
1.68 |
0.41 |
0.35 |
| 42.3 |
2 |
0.9 |
39 |
0.8 |
0.22 |
0.28 |
| 42.3 |
2 |
0.9 |
39 |
1.2 |
0.22 |
0.28 |
| 42.3 |
2 |
0.9 |
47 |
0.4 |
0.30 |
0.35 |
| 42.3 |
2 |
0.9 |
47 |
1.2 |
0.30 |
0.35 |
| 42.3 |
2 |
1.8 |
33 |
0.425 |
0.19 |
0.22 |
| 42.3 |
2 |
1.8 |
33 |
1.33 |
0.19 |
0.22 |
| 42.3 |
2 |
1.8 |
39 |
1.68 |
0.32 |
0.28 |
| 42.3 |
2 |
1.8 |
47 |
1.5 |
0.58 |
0.35 |
| 42.3 |
2 |
1.8 |
57 |
1.5 |
0.71 |
0.43 |
| 42.3 |
2 |
1.8 |
33 |
0.31 |
0.16 |
0.22 |
| 42.3 |
2 |
1.8 |
33 |
0.9 |
0.16 |
0.22 |
| 42.3 |
2 |
1.8 |
39 |
0.4 |
0.26 |
0.28 |
| 42.3 |
2 |
1.8 |
39 |
1.2 |
0.26 |
0.28 |
| 42.3 |
2 |
1.8 |
47 |
0.4 |
0.32 |
0.35 |
| 42.3 |
2 |
1.8 |
47 |
1.2 |
0.32 |
0.35 |
| 57 |
56.5 |
2 |
0.9 |
41 |
2.8 |
0.45 |
0.47 |
| 56.5 |
2 |
0.9 |
55 |
2.8 |
1.1 |
0.7 |
| 56.5 |
2 |
0.9 |
75 |
2.8 |
1.7 |
1.0 |
| 56.5 |
2 |
0.9 |
41 |
1.0 |
0.39 |
0.47 |
| 56.5 |
2 |
0.9 |
41 |
2.0 |
0.39 |
0.47 |
| 56.5 |
2 |
0.9 |
55 |
1.0 |
0.86 |
0.7 |
| 56.5 |
2 |
0.9 |
55 |
2.0 |
0.86 |
0.7 |
| 56.5 |
2 |
0.9 |
76 |
1.0 |
1.35 |
1.0 |
| 56.5 |
2 |
0.9 |
76 |
2.0 |
1.35 |
1.0 |
| 56.5 |
2 |
1.8 |
41 |
2.8 |
0.47 |
0.47 |
| 56.5 |
2 |
1.8 |
51 |
2.8 |
0.95 |
0.65 |
| 56.5 |
2 |
1.8 |
55 |
2.8 |
1.02 |
0.7 |
| 56.5 |
2 |
1.8 |
76 |
2.8 |
1.7 |
1.0 |
| 56.5 |
2 |
1.8 |
41 |
1.0 |
0.39 |
0.47 |
| 56.5 |
2 |
1.8 |
41 |
2.0 |
0.39 |
0.47 |
| 56.5 |
2 |
1.8 |
51 |
1.0 |
0.72 |
0.65 |
| 56.5 |
2 |
1.8 |
51 |
2.0 |
0.72 |
0.65 |
| 56.5 |
2 |
1.8 |
55 |
1.0 |
0.82 |
0.7 |
| 56.5 |
2 |
1.8 |
55 |
2.0 |
0.82 |
0.7 |
| 56.5 |
2 |
1.8 |
76 |
1.0 |
1.35 |
1.0 |
| 56.5 |
2 |
1.8 |
76 |
2.0 |
1.35 |
1.0 |
| 56.5 |
2 |
1.8 |
28 |
0.5 |
0.36 |
0.48 |
| 56.5 |
2 |
1.8 |
41 |
1.56 |
0.4 |
0.54 |
| 56.5 |
2 |
1.8 |
51 |
2.8 |
0.68 |
0.6 |
| 56.5 |
2 |
1.8 |
56 |
2.55 |
0.84 |
0.65 |
| 56.5 |
2 |
1.8 |
76 |
3.3 |
1.25 |
0.95 |
| 60 |
60 |
2 |
1.8 |
47 |
1.4 |
1.1 |
0.6 |
| 60 |
2 |
1.8 |
58 |
3.0 |
1.95 |
0.8 |
| 60 |
2 |
1.8 |
67 |
2.8 |
2.1 |
1.0 |
| 60 |
2 |
1.8 |
75 |
4.0 |
2.3 |
1.2 |
| 60 |
2 |
1.8 |
86 |
3.0 |
2.5 |
1.4 |
| 86 |
86 |
2 |
1.8 |
66 |
6.0 |
4.8 |
1.6 |
| 86 |
2 |
1.8 |
99 |
3.0 |
6.5 |
2.5 |
| 86 |
2 |
1.8 |
123 |
6.0 |
9.0 |
3.2 |
| 86 |
2 |
1.8 |
156 |
5.6 |
11.5 |
5.2 |
| 110 |
110 |
2 |
1.8 |
99 |
2.1 |
12 |
4.8 |
| 110 |
2 |
1.8 |
150 |
2.4 |
21 |
8.0 |
| 110 |
2 |
1.8 |
200 |
2.7 |
30 |
11.6 |
| 130 |
134 |
2 |
1.8 |
200 |
6.0 |
25 |
16 |
| 134 |
2 |
1.8 |
226 |
6.0 |
27 |
18 |
| 134 |
2 |
1.8 |
282 |
6.0 |
37 |
22 |
|
| |
|
|
 |
|
 |
